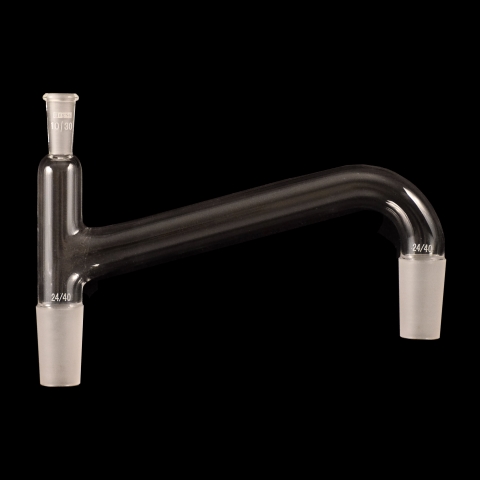

AD-0067-001: Distillation Adapter, 105 Degree

Used to connect distilling column with vertical condensers. With upper outer standard taper joint to accept 10/30 jointed thermometers or other adapters. Both lower inner standard taper joints are the same size. Sidearm is at a 105 degree angle to the vertical tube.

Thermometer joint size 10/30. Two lower inner joints size 24/40. Immersion 75mm. Length between joints 180mm.
