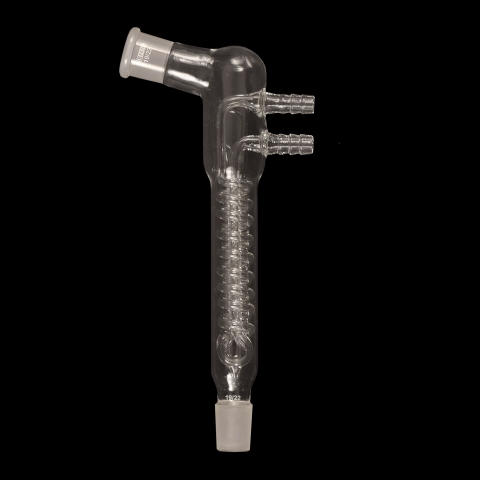

CD-0040-002: Dimroth Reflux Condenser, Coil Type, 75 Degree

Dimroth condenser tightly wrapped coil with O.D. of 5mm to provide maximum cooling. The internal double spiral through which coolant flows such that the coolant inlet and outlet are both at the top provides maximum cooling. With upper outer standard taper joint set at a 75 degree angle to the condenser body and the lower inner standard taper joint. Both joints are of the same size. Hose connectors have an O.D. of 10mm at the largest serration. Excellent for use with high vapor pressure solvents.

Effective length 100mm. Outer and inner joints size 19/22.
